MDT719 Mobile Data Terminal
TS 719 is a Hign-end MDT designed for fleet management & industrial applications. There have one VGA connector which support flexible different size LCD displayer and touch screen
 Technical Specifications

Processor & Memory
ARM11 800M
256MB Nand Flash , 128MB SDRAM

Operating System
Wins CE 6.0

WAVECOM Q2687/2686 Extreme

GPS Receiver
Channels: 16
Accuracy: 10m (CEP)
Acquisition: 8s (Hot), 38s (Warm), 45s (Cold)
Dimension: ( 196X123X30 mm)
Casing: Steel
Operating: 9V to 28V dc
(Meet automobile stds)
VGA Display
7"800X600 TFT with touch screen

2 RS232 ports (3 pins)

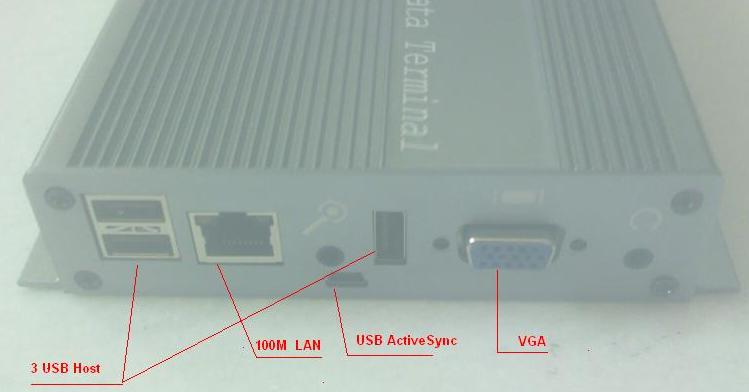

3x USB host
1 x USB client
1 x SD
4 x digital input ports
4 x digital output ports
1X 100M Ethernet
1 x VGA
1 x GPS
1 x GSM
1 x GPS antenna (5m) with gold connector
1 x GSM antenna (2m) with silver connector
1 x 36way interface cable (2m) with 5 x DB9
1 x mounting bracket
Environmental and Certifications
Operating temperature: 0 deg C to +60 deg C
Storage temperature: -20 deg C to +85 deg C
Relative humidity: 5% to 95% RH
Vibration and shock
Regulation: CE (1999/5/EC) or FCC

Standard Software Development Kit
Application Programming Guide
