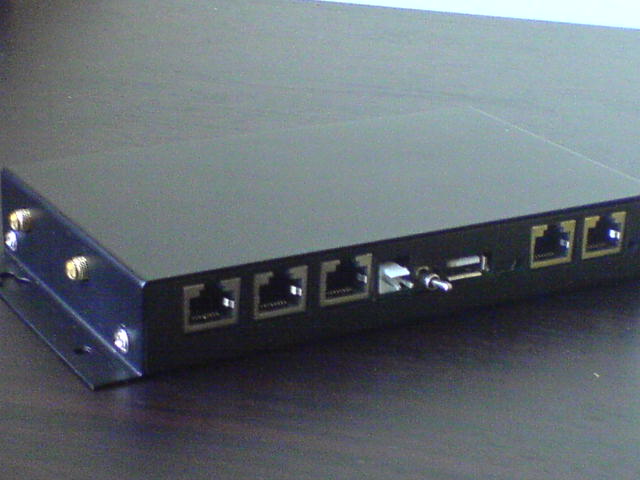

TS609 Mobile Data Acquisition
TS609 is a new generation Mobile Data Acquisition and Telemetric Unit. It comes with WinCE 4.2 core operating system and 7 extra Com Port which supports a wide range of applications. The comprehensive SDK offers applications developer in building applications faster and easy
 Technical Specifications

Processor & Memory
ARM9 200M/400M
64 MB Nand Flash RAM, 32MB SDRAM
(Up to 64MB SDRAM)
Operating System
Wins CE 4.2 core GPRS Modem
Band: Dual GSM 900 / 1800 MHz (Class B)
GPRS: Class 8 module
Modes: GPRS, SMS, Voice
SIM card: 3V dc
GPS Receiver
Channels: 16
Accuracy: 10m (CEP)
Acquisition: 8s (Hot), 38s (Warm), 45s (Cold)
Dimension: (200X120X30 mm)
Casing: Plastic
Operating: 6V to 28V dc
(Meet automobile stds)
Mono 240X64(optional)

6xRS232 ports (3 pins),1XRS232(Debug)
1 x USB host
1 x USB client
1 x SD
6 x digital input ports
2 x digital output ports
1 x GPS (gold)
1 x GSM (silver)
1 x GPS antenna with gold connector
1 x GSM antennawith silver connector
1 x mounting bracket
Environmental and Certifications
Operating temperature: 0 deg C to +55 deg C
Storage temperature: -20 deg C to +85 deg C
Relative humidity: 5% to 95% RH
Vibration and shock
Regulation: CE (1999/5/EC) or FCC
